SALT Elite DBC55 Road Wheelset (UCI)

Description

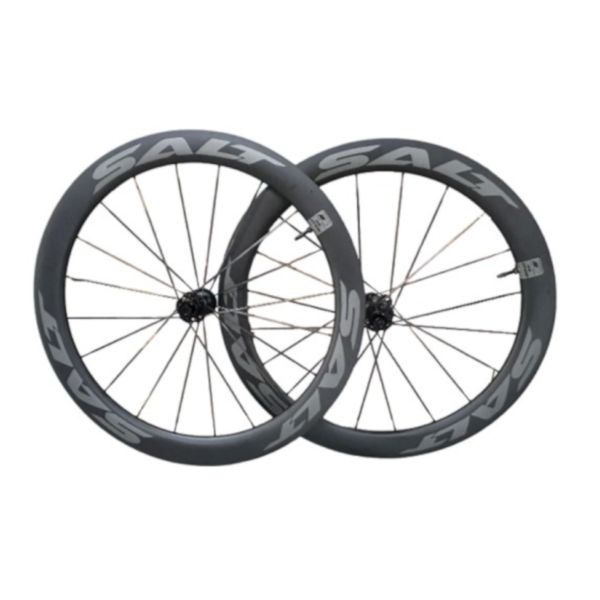

The DBC55 wheelset has a 55mm deep rim, these wheels offer excellent aerodynamics without compromising on stability, making them versatile for various terrains. The rims, crafted from premium Toray T700 and T800 carbon fiber, ensure both strength and a lightweight feel. The front wheel, weighing just around 625g, features a sleek 20-spoke design with a radial and 2x cross pattern, enhancing both responsiveness and reliability on long rides.

The rear wheel complements the front with a similar 55mm profile and a 20-spoke arrangement, engineered for optimal power transfer. Both wheels are tubeless-ready, giving riders the option for a smoother, more puncture-resistant ride. Finished in a sophisticated UD matte, the DBC55 wheels are not only built for performance but also have a sleek, modern aesthetic that will elevate any bike set

Wheels

FRONT WHEEL(DBC55)

Weight: 625g/+-15g

DBC45 Hub Used: SALT Elite

Rim Depth: 55mm

Rim Max Width: 27mm

Spoke Count: 20H Disc Brake

Spoke Pattern Non-Drive: 2 x cross

Spoke Pattern Drive: Radial

Max Tire Pressure: 65 psi

External Nipples: Alloy Black

Spokes: SALT carbon spoke

Spoke Length: 258mm

Torque Front: 15N

Tire Bead Inside: 23mm

Front Hub: Centre Lock

REAR WHEEL(DBC55)

Weight: 750g/+-15g

DBC45 Hub Used: SALT Elite

Rim Depth: 55mm

Rim Max Width: 27mm

Spoke Count: 20H Disc Brake

Spoke Pattern Non-Drive: 2 x Cross

Spoke Pattern Drive: 2 x Cross

External Nipples: Alloy Black

Spokes: SALT Carbon Spokes

Spoke Length Non-Drive: 258mm

Spoke Length Drive: 271mm

Rim Type: Carbon Clincher

Max Tire Pressure: 65 psi

Brake Surface: Disc brake

Torque Rear: 13-20N

Tire Bead Inside: 23mm

Cassette Compatibility: XDR, Shimano/Campagnolo 11/12speed

Rear Hub: Centre Lock

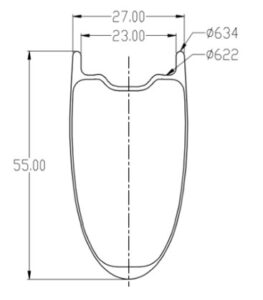

RIM GEOMETRY

Model: SALT 55DB Height: 55mm

Width: 27mm

Internal width: 23mm

Material: Carbon Fiber T800

Rim Profile: Clincher hookless, tubeless ready

ERD: 534MM

Rim Weight: 440g/+-15g

Rim Finish: UD Matt

Guarantee: 2 Years

Versions Available: Disc Brake

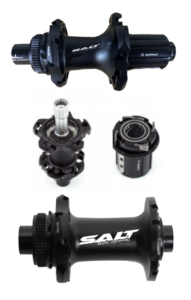

SALT ELITE HUBS

Model: SALT Elite

Freebody: Shimano 10/11s/XDR/12 speed

Weight: Front is 118.7g/ rear is 240g

Thru Axle size: Front 12x100mm / Rear 12 x142mm

Bearing size: Front: 6803 x 2, Rear: 6803 x 3 / 690 3 x1

Disc lock: Central lock

Occlusal: PAWL

Available Bearings: ELITE Ceramic (ELITE Steel Bearings and ELITE CeramicSpeed Bearings SPECIAL ORDERS only)

CARBON SPOKES

Model: SALT Elite

Weight: 3.2g including nipple

Spoke Structure: FCS Process

Nipples: Aluminum
